Speed up your 2D annotations with the FORMlab Dimensionator Add-in

Dimensioning in Revit is painful: endless tabbing through overlapping elements and clicking precise references one by one. The Dimensionator replaces your workflow by allowing you to simply draw lines where you want your dimensions instead. It handles all the reference picking for you by determining what your drawn detail lines intersect with.

Configure element filters to specify what element categories should be dimensioned. Include/exclude elements in linked files with a single toggle. Custom families are supported too: any generic model with an IFC Export Category set is treated the same as its native equivalent.

Overlapping dimension text is rearranged automatically, keeping every value clearly readable without manual adjustment.

Key Features

✅ Draw, don’t pick – Draw lines through what you want to dimension and the add-in handles all reference picking.
✅ Keyboard shortcuts – Keybind the add-in’s main actions to work even faster.
✅ Filter – Control which elements get dimensioned.
✅ Linked file support – Include elements from active linked files.
✅ Rearrange overlapping text – Automatically space out dimension values for clear readability.

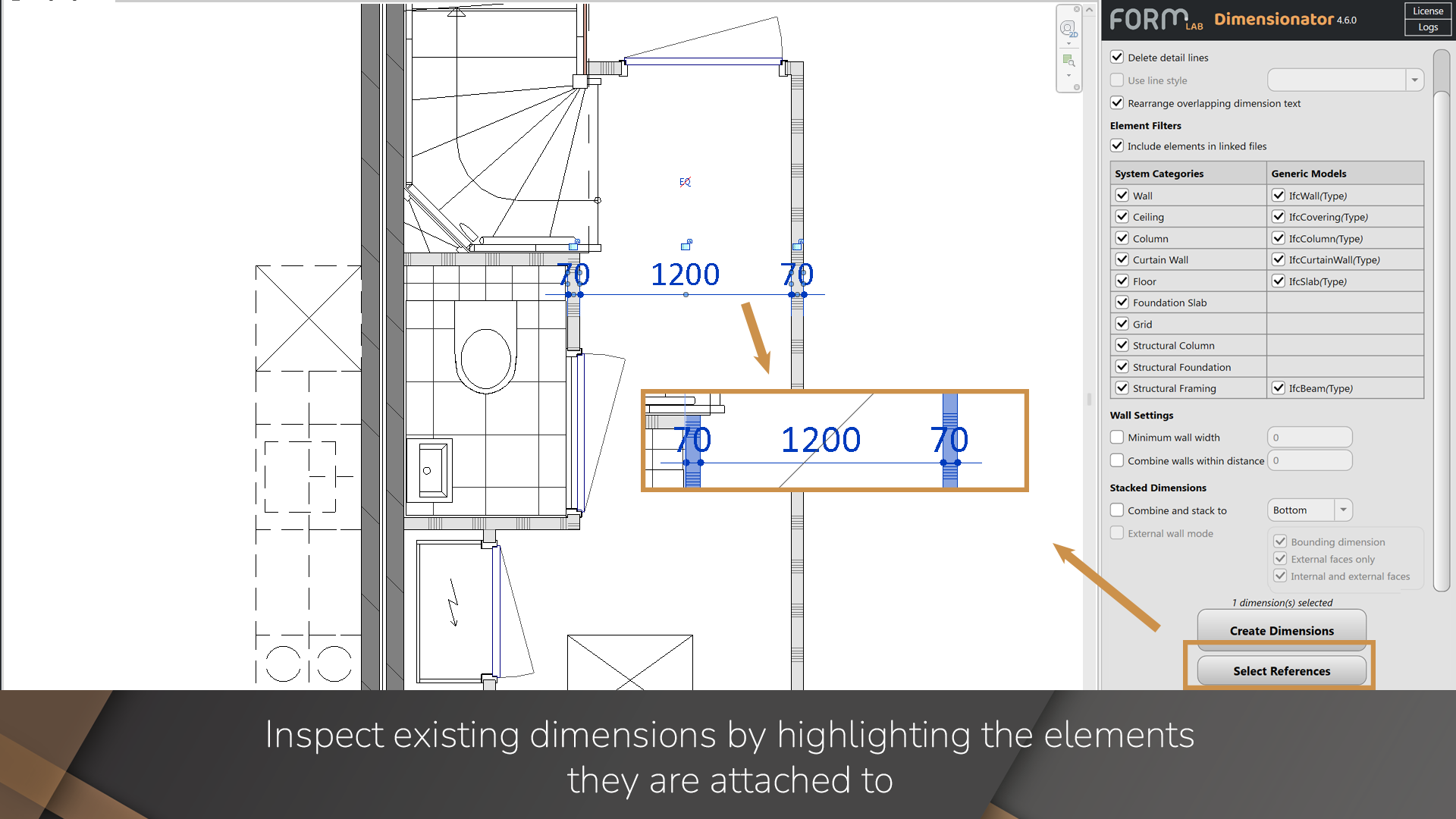

✅ Dimension validation – Highlight the elements any dimension is attached to.
✅ Works in Floor Plan, Ceiling Plan, Elevation, and Section views.

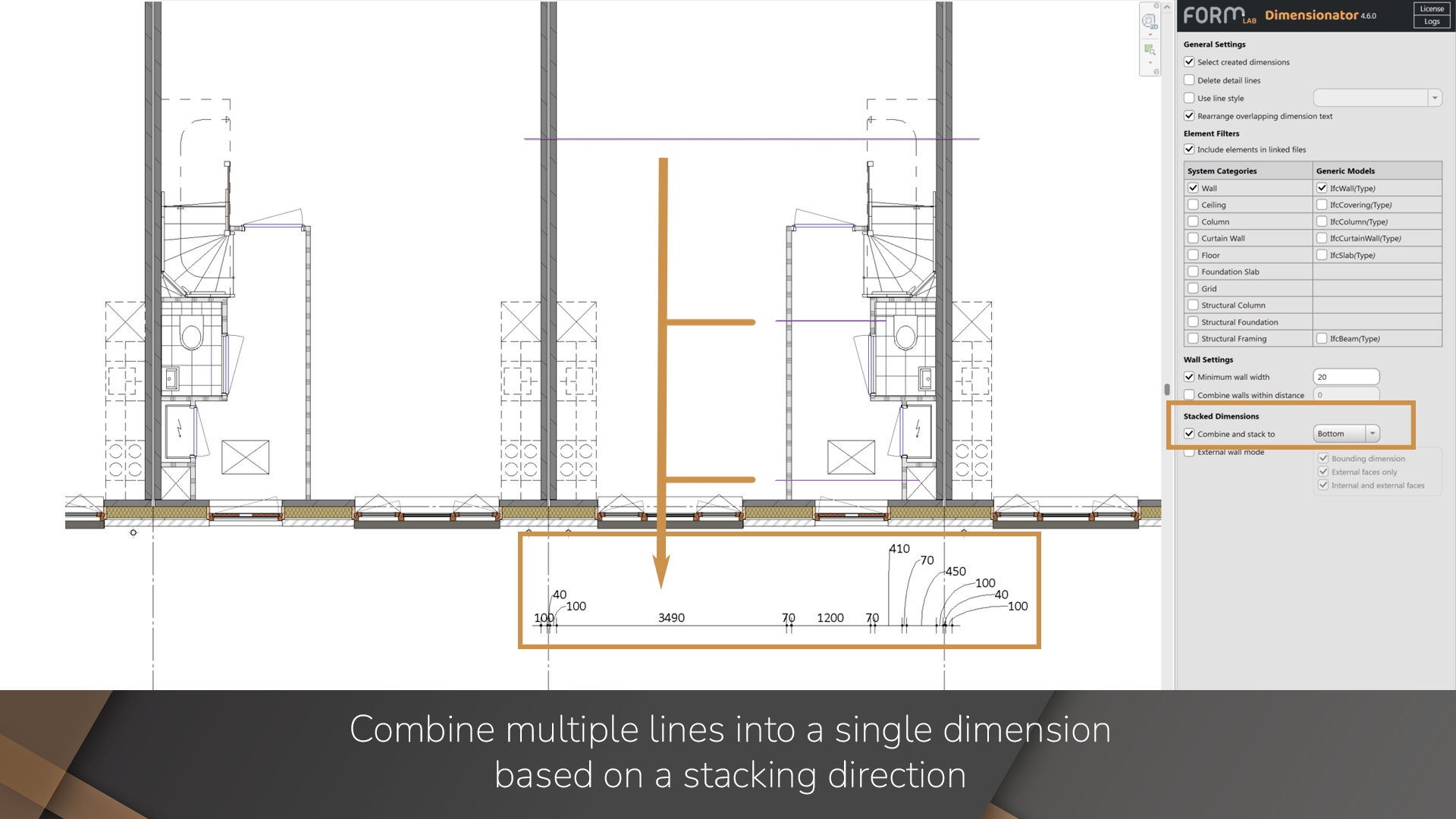

✅ Stacked dimensions – Combine multiple lines into a single dimension based on a stacking direction.
✅ External Wall Mode – Generate multiple dimensions for external walls: bounding, external faces & internal+external faces.

Manage Revit data faster and cleaner with the FORMlab ParameterFocus Revit Add-in

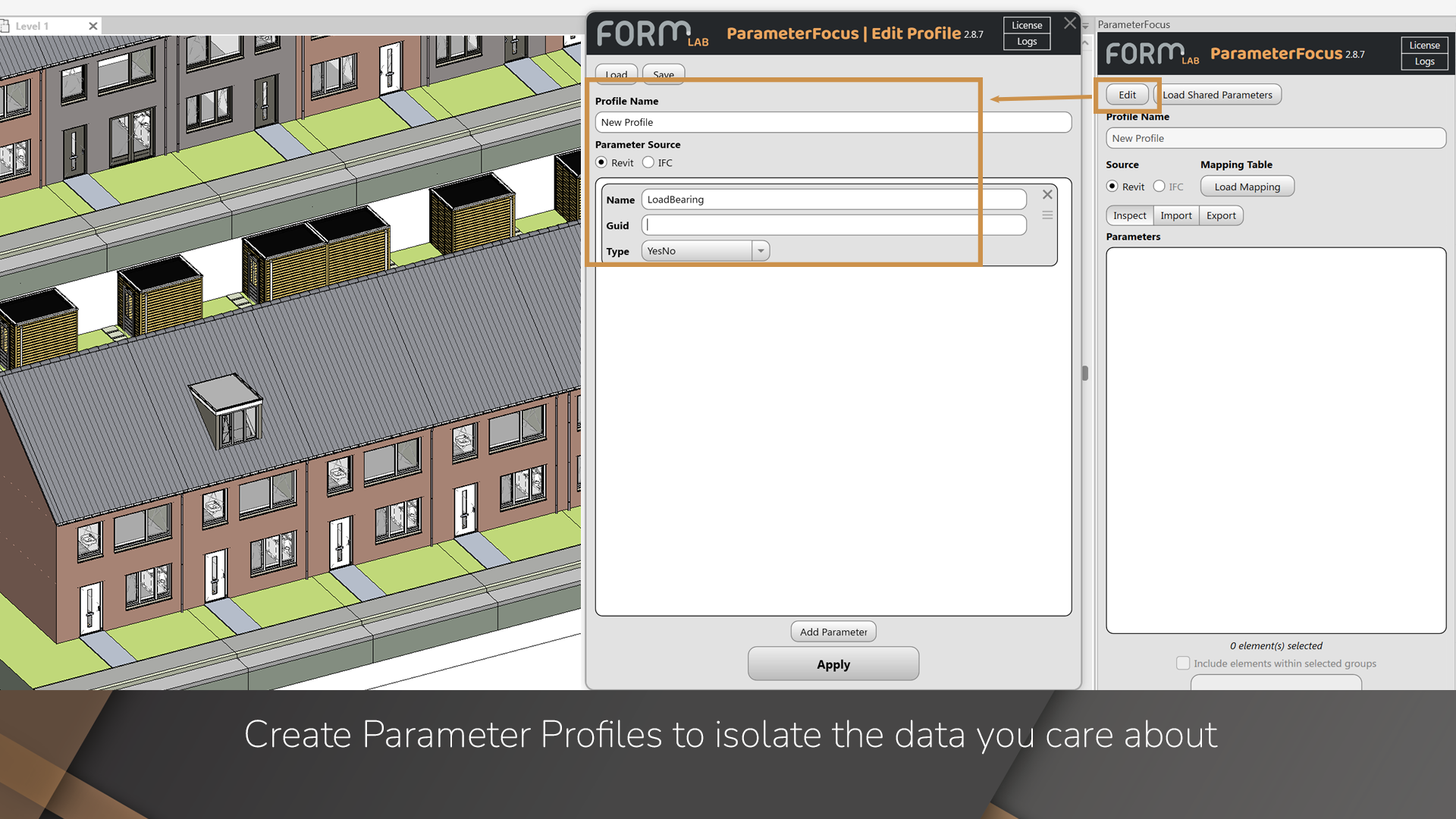

BIM teams can manage parameters in a smarter, faster, and more structured way using ParameterFocus. The add-in introduces Parameter Profiles, which let you define exactly which parameters are relevant for a specific task, project phase, or role. This eliminates the need to scroll through long, cluttered lists in the Properties window.
See and edit parameters from all sources at a glance – no need to click through to an element’s type or elements inside a group.
Beyond improving focus, ParameterFocus also enhances data consistency. Predefine allowed values for each parameter in a profile to prevent typos and other inaccuracies across your teams and projects. Specify parameter-GUIDs to ensure the correct parameters are always used in messy projects where duplicate parameter names exist.
Profiles can be easily shared among team members or with external partners, ensuring that everyone works with the same structure and standards, no matter the project or company.

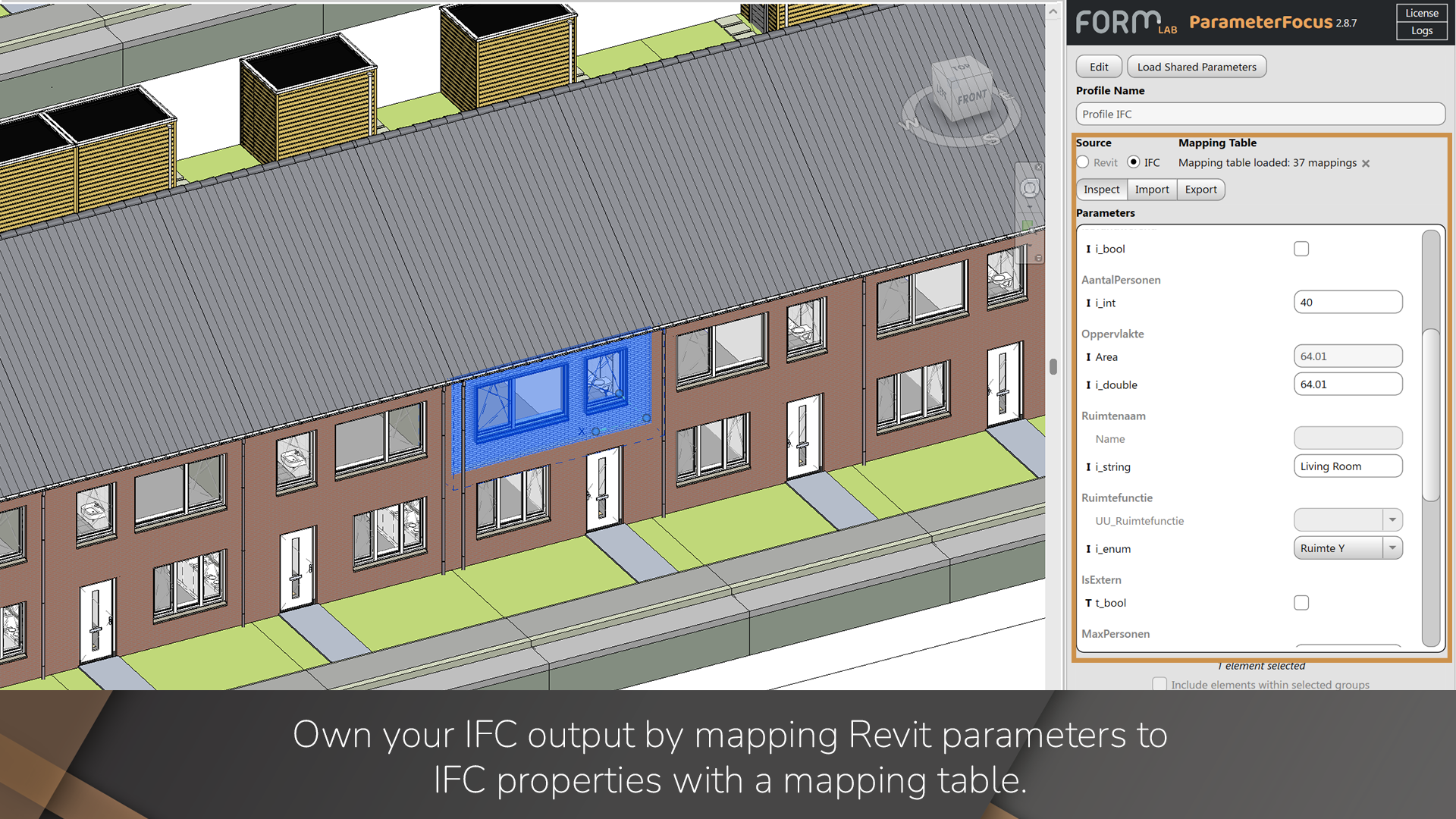

Work with IFC property names too: set a profile’s source to IFC and load a Revit IFC mapping table. ParameterFocus resolves each IFC property to the correct underlying Revit parameter(s), so you can inspect and edit using the terminology your exchange requirements expect.

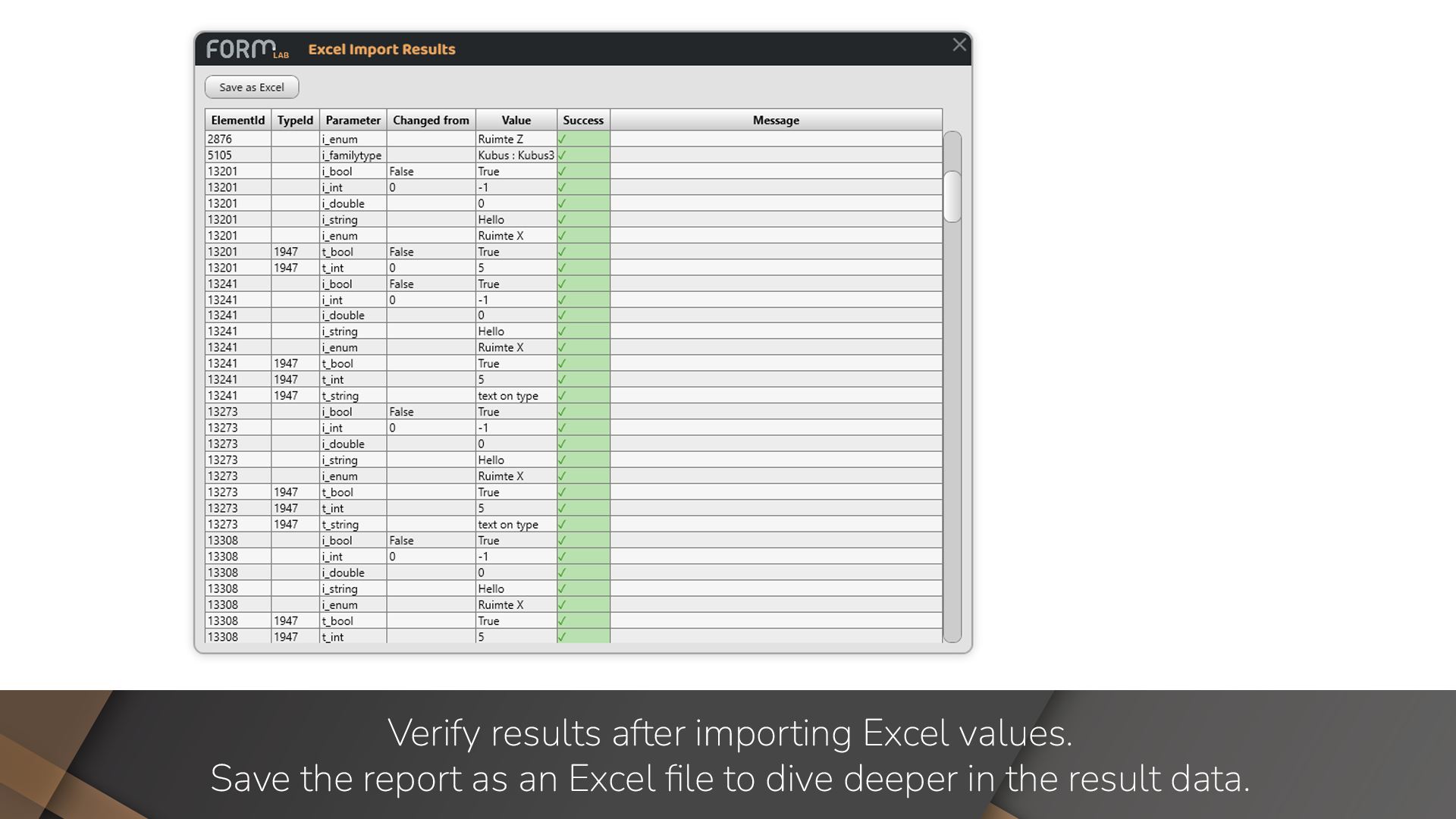

Integrate with Excel to edit parameters projectwide with fast bulk updates. Import Excel files to apply all values found on the selected sheet for parameters in the current profile. Export all profile parameter values in a document to Excel, edit the spreadsheet as needed, then import it to apply those values across the project.

Key Features

✅ Focus on what matters: create and share Parameter Profiles to filter out the noise.

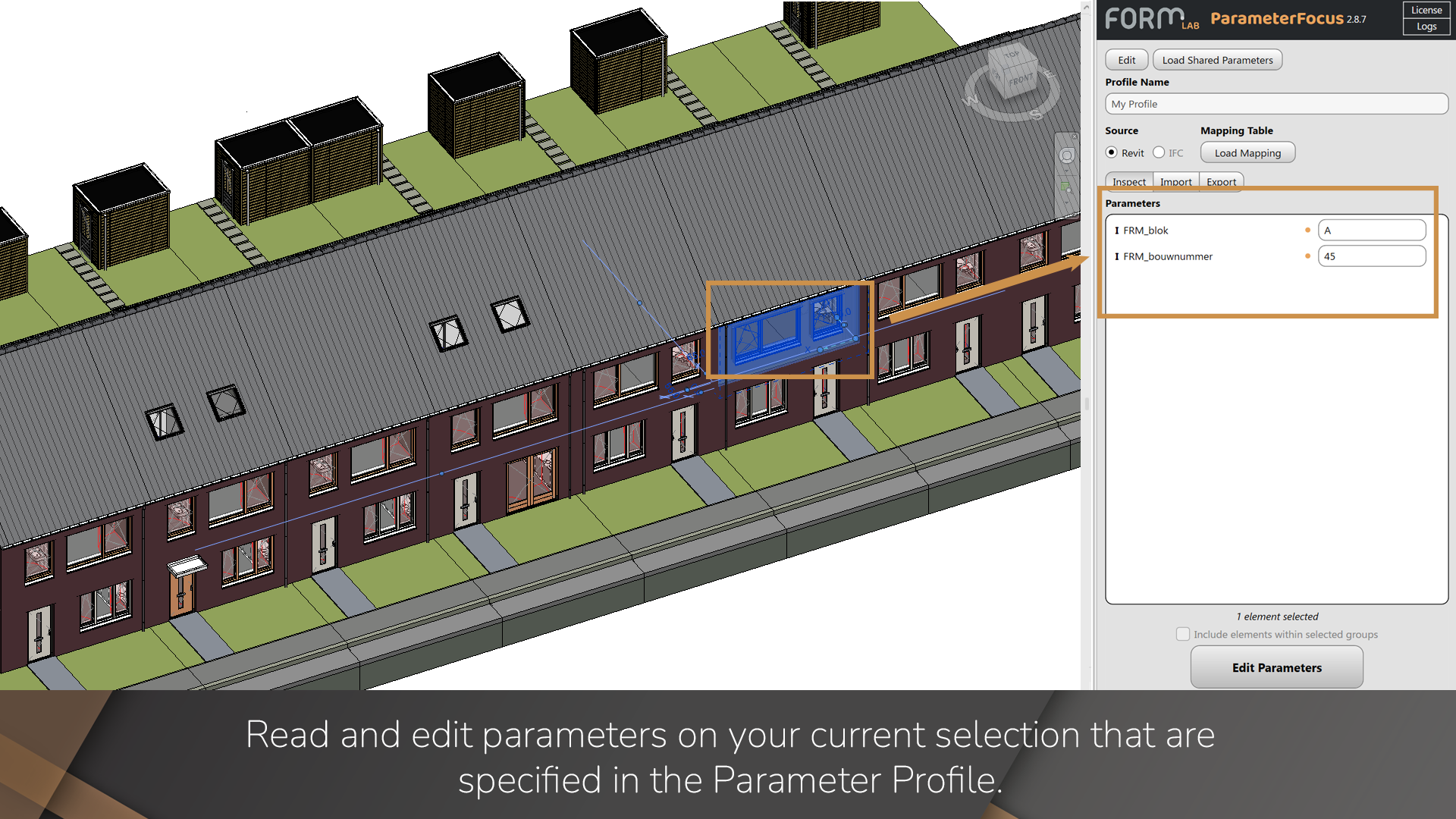

✅ View/edit parameters defined in your profile for the currently selected elements.
✅ Define and enforce allowed values for parameters to standardize input.
✅ Edit ‘through’ selected elements directly on types or elements inside groups.
✅ Manage IFC data inside Revit: load your mapping table – see both Revit & IFC names – fix values before export.

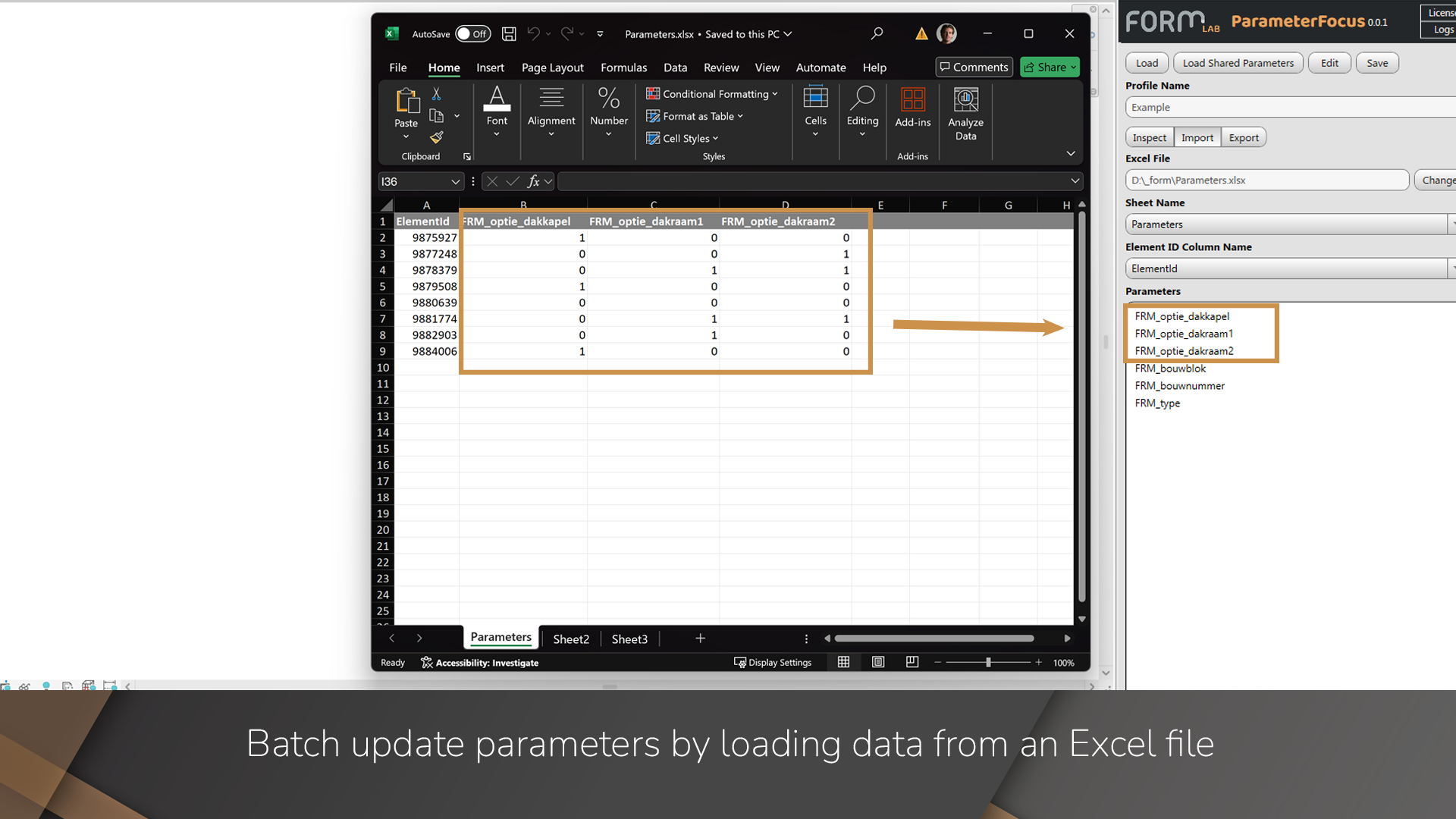

✅ Batch update parameters by importing data from an Excel file.
✅ Export all parametervalues to Excel to make bulk edits externally.

Save time renaming elements in your Revit models. Batch rename entire element categories in your model in one go. Before making any changes to your model, you can use the Preview buton to see exactly which elements will be affected and how their names will change.

The tool works with a wide range of Revit element categories, making it useful for various naming tasks throughout your project lifecycle.

Key Features

✅ Select element categories from a comprehensive dropdown menu.
✅ Find and replace text patterns in element names.
✅ Preview all changes before applying them with highlighted comparisons.
✅ Apply changes across your model with a single click.
